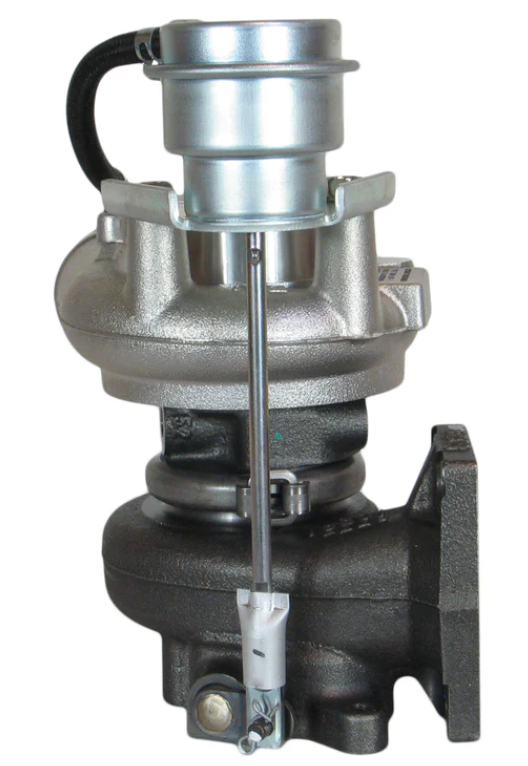

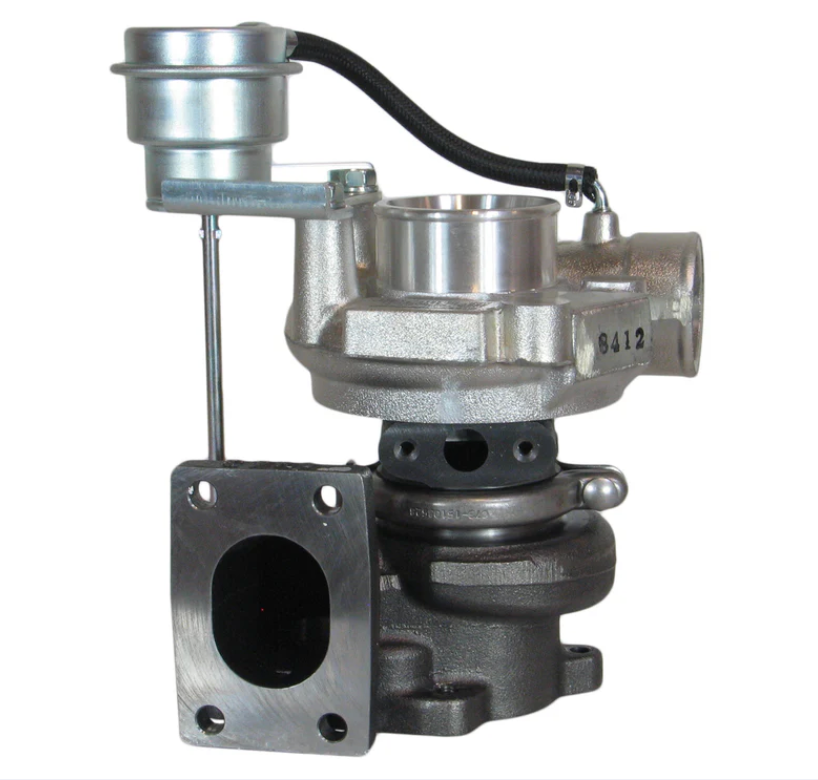

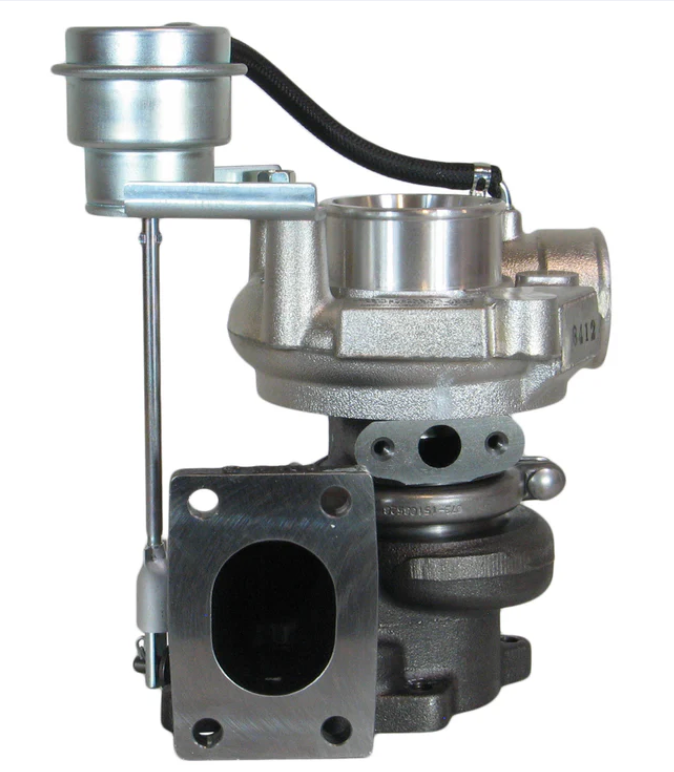

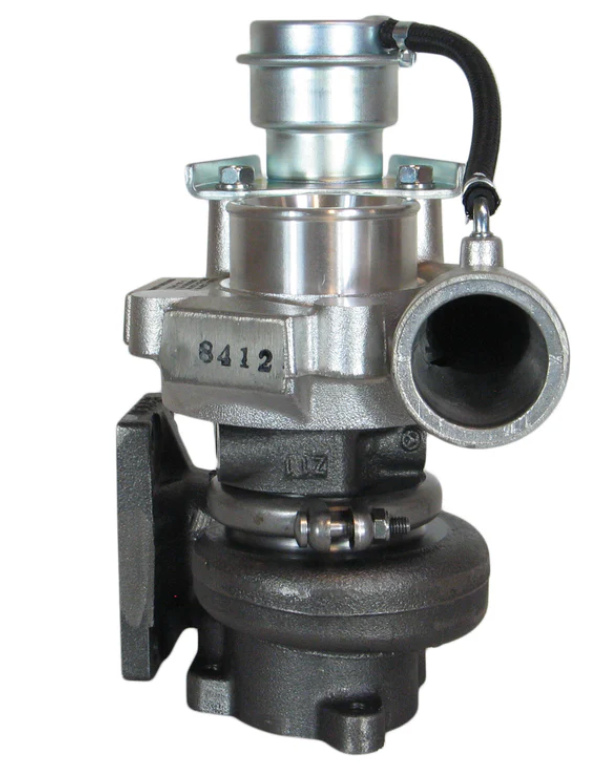

Turbocharger KOMATSU 49377-01570
Suitable for:
Various vehicles - see part numbers for compatibility
Specifications:
Engine codes:
B3.3T Cummins
Part numbers:
KOMATSU 49377-01570, 4937701570, 4955948, 4994911, 4937701570, 49377-01570, 4937701650, 49377-01650, 4955948, 4955948NX, 4955948RX, 4994911, 49T7701650, 6273818100, 6273-81-8100, 6273818300, 6273-81-8300, 6273818100, 49377-01570, 49377-01650, 4937701570, 4937701650, 49T77-01570, 49T77-01650, 49T7701570, 49T7701650, 6273-81-8100, 6273818100, 6273-81-8300, 6273818300, 170-041-0277, 170-041-0316, 1700410277, 1700410316, 4955948, 4955948NX, 4955948RX, 4994911, 49377-01650, 4937701570, 4937701650, 49T7701570, 6273-81-8100, 6273-81-8300, 6273818100, 6273818300
| Part Number |
49377-01650 |
| Previous Part Number |
4937701650, 49377-01660, 49377-01570, 49377-01580 |
| OE number |
6273-81-8300, 6273818300, 6273-81-8100, 6273-81-8200, 6273-81-8400, 6205818250 |
| Description |
Komatsu S3Q2, Construction, Earth Moving 303.5D Excavator |
| CHRA |
49177-08500 (4917708500, 49177-08501, 49177-08505)(1401404948) |
| Turbo Model |
TD04L, TD04L-10T-7.0 |
| Engine |
Cummins B3.3T |
| Fuel |
Diesel |
| Displacement |
3.3L, 3300 ccm, 3 cylinder |
| Fuel |
Diesel |
| Bearing Housing |
49177-25100 (49135-25100)(Oil Cooled)(1401404450, 1900011152) |
| Turbine Wheel |
49177-30300 (49177-30320)(Ind. 47.19 mm, Exd. 41.22 mm, Trm 7.39, 12 Blades)(1401404439, 1100030029) |
| Comp. Wheel |
49177-44200 (Ind. 35.5 mm, Exd. 48.99 mm, Trm 6.32, 6+6 Blades, Superback)(1401404430) |
| Back plate, Seal plate |
49135-00044 (49135-15405)(1401635300, 1800016016) |
| Heat shield Number |
49170-19100 (1401404340) |
| Repair Kit |
49177-80410 (1401404755) |
| Gasket (oil outlet) |
210243 (Paper) |
| Gasket (turbine inlet) |
210633 (Inox Steel) |
| Manufacturer |
Mitsubishi |
